Featured Architectural Entrance & Exterior Door Systems
Direct factory supply of CE-marked, engineered pivot doors, armored security entrances, impact-resistant patio doors, and luxury metal-glass façade openings tailored to architectural shop drawings.
Modern Swing Opening Customized Size Front Entry Doors Aluminum Alloy Iron Exterior Security Doors Exterior Doors For House
Wholesale Modern Exterior Composite Fiberglass Door with Waterproof Glass Windows and Impact Resistance
Entry Hurricane Impact Hotel Use French Exterior Thermal Break Aluminum Alloy Patio Doors Double Glazed Tempered LowE Glass TUV
China Factory Wholesale Interior Glass Room Door Entry Front Doors Black Steel Frame Glass Door With Sidelight Design
YUDON DOR Armoured Door Bulletproof Rust Proof for Modern Apartment Direct Factory Puertas De Seguridad Luxury Exterior Door
Modern Handcrafted Organic Wave Design Solid Wood Exterior Door for Contemporary Villa
Steel Pivot Door Manufacturer Custom Steel Windows Doors Modern French Style Slim Frame Thermal Break Exterior Outdoor Fire

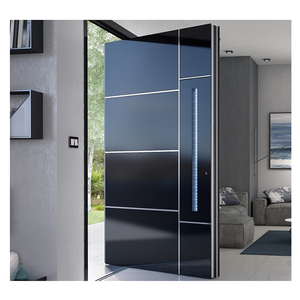

Exterior Aluminium Profile Pivot Security Doors Modern Entry Door Manufacturer
Engineering Excellence: CE Certified Architectural Pivot Entrance Systems
In modern commercial architecture and high-end residential luxury housing, entryways are no longer merely functional access points—they are structural statement pieces. The demand for grand, oversized apertures has driven architectural specifications away from conventional side-hung butt hinges toward advanced heavy-duty Pivot Entrance Door Systems. Unlike standard hinges attached to a vertical jamb that induce leverage stress and frame sag under heavy loads, pivot door systems offset the axis of rotation vertically along top and bottom pivot pins. This mechanical advantage allows for door leaves exceeding weights of 500 kg and widths over 2.5 meters while maintaining effortless, push-touch fluid operation.
As a premier OEM/ODM manufacturer and global exporter, Primor Metal Door Co., Ltd. specializes in custom-engineered aluminum alloy, steel-slim, and composite pivot door systems certified under European Conformity standards (CE EN 14351-1). Achieving compliance for high-span pivot entry doors requires solving critical engineering challenges: maintaining structural rigidity against wind pressure, ensuring thermal insulation across broad metal profiles, and implementing airtight multi-stage weather sealing along floating edges.
Structural Mechanics & Hardware Load Calibration
The reliability of a large-format exterior pivot entrance door hinges entirely on its pivot mechanism and structural profile core. Primor integrates heavy-duty, self-closing floor pivots (featuring hydraulic dampening and 360-degree rotation or hold-open positions at 90°) manufactured from high-tensile 316 stainless steel. The weight of the door is transferred directly to the subfloor slab, eliminating structural fatigue on the side jambs.
For exterior security doors and armoured villa entrances, the aluminum profiles utilize extruded 6063-T6 multi-chambered structural alloys reinforced with internal galvanized steel cores. This prevents torsion warping caused by thermal expansion differences between hot exterior surfaces and air-conditioned interior environments (the "bi-metal effect").
Thermal Break Insulation & Perimeter Sealing Tech
Traditional metal doors without thermal isolation act as thermal bridges, transferring cold or heat rapidly into the building envelope. Primor’s architectural pivot systems feature high-performance PA66GF25 (25% glass fiber reinforced polyamide) thermal break strips. This mechanical barrier isolates the exterior aluminum skin from the interior profile, lowering frame thermal conductivity drastically.
To address the inherent challenge of weather-sealing a rotating pivot door (where bottom and top edges sweep across surfaces), Primor integrates double-drop automated bottom acoustic/weather seals combined with EPDM magnetic perimeter gaskets. When the door closes, concealed spring-loaded drop seals drop down instantly to seal the threshold gap against driving rain and draft infiltration, achieving Class 9A water tightness under EN 12208.
European CE EN 14351-1 Certification & Performance Testing
For architects, builders, and importers sourcing doors for European and international jurisdictions, compliance with the Construction Products Regulation (CPR EU No 305/2011) and EN 14351-1 (Windows and external pedestrian doorsets) is mandatory. Primor’s pivot entry doors undergo rigorous testing under third-party notified bodies (such as TÜV and Intertek) to verify key performance attributes:
| Performance Test Criterion | European Test Standard | Certified Rating Grade | Engineering Specification & Impact |
|---|---|---|---|
| Air Permeability | EN 12207 | Class 4 (600 Pa) | Prevents forced air infiltration even during violent gale-force storm pressure. |
| Water Tightness | EN 12208 | Class 9A (600 Pa) | Unsheltered driving rain resistance via double EPDM gaskets and drop-down floor seals. |
| Wind Load Resistance | EN 12210 | Class C5 (2000 Pa) | Structural deflection under extreme hurricane-grade lateral force is less than 1/300th span. |
| Thermal Transmittance | EN ISO 10077-2 | Uw ≤ 1.1 W/m²K | Achieved via PA66 thermal breaks paired with Low-E double/triple insulated glass lites. |
| Acoustic Insulation | EN ISO 717-1 | Rw up to 42 dB | Attenuates urban traffic and ambient outdoor noise through laminated acoustic glazing. |
| Security & Burglar Resistance | EN 1627 / RC3 | Grade RC3 / RC4 | Multi-point electromechanical hook locking pins, anti-drill plates, and laminated glass. |
Future Procurement Trends in Architectural Entrance Doors
As real estate developers, contractors, and building product distributors analyze global procurement strategies, several macro technological shifts are defining the specifications for entrance doors over the next decade:
1. Over-Sized Apertures & Ultra-Slim Sightlines
Modern villa designs favor grand scale facades with door heights extending up to 4 to 6 meters. Procurement is moving away from traditional standard 2.1m doors toward custom high-span pivot solutions where the frame vanishes into flush head and threshold channels.
2. Smart Biometric & Motorized Lock Integration
Commercial and residential project briefs increasingly demand zero-key access control. Pivot doors are now pre-wired during factory production for concealed electromechanical multi-point locks compatible with facial recognition, fingerprint scanners, home automation (KNX, Crestron), and mobile Bluetooth credentials.
3. Decarbonization & Low-Carbon Aluminum Alloy
With stringent ESG regulations and European Green Deal directives, green procurement policies require low-embodied-carbon metals. Primor utilizes recycled, high-purity aluminum billets processed via hydro-powered extrusion mills, drastically lowering greenhouse gas emissions per square meter of façade installed.
4. Hybrid Material Aesthetics (Metal Composite & Handcrafted Timber)
Architects no longer accept single-texture doors. Modern specifications demand hybrid compositions—such as structural weather-proof aluminum exteriors bonded with organic handcrafted timber, sintered stone cladding, or wave-engraved architectural brass interior panels.
Why Global Project Teams Partner with Primor
As a specialized manufacturer focused on high-performance window and door systems, Primor Metal Door Co., Ltd. bridge the gap between custom architectural design and factory-direct precision manufacturing.
In-House CAD/BIM Co-Engineering
We do not manufacture from standardized stock catalogs. Every door is engineered directly from your structural site openings. Our engineering department generates detailed 2D/3D shop drawings, anchor detail calculations, and threshold integration schematics for architect sign-off before raw material cutting begins.
Direct U.S. Showroom Presence
To provide localized service and physical material verification, Primor operates physical product showrooms across the United States, including key hubs in Los Angeles, the Bay Area, Houston, Dallas, and Phoenix. Clients can inspect full-scale operating pivot doors, hardware swatches, and thermal break mockups in person.
Export-Ready Heavy Packing & Logistics
Large pivot doors require specialized transport protection. All orders undergo full factory pre-assembly and testing before being dismounted, labeled according to window schedules, wrapped in protective Pearl Cotton film, and enclosed inside fumigated steel-reinforced plywood crates engineered for sea and air freight.
B2B Procurement & Technical Execution FAQ
Addressing key technical, compliance, custom manufacturing, and international freight questions asked by architects, general contractors, and trade importers.
How do CE certified pivot doors prevent water penetration along bottom floating threshold gaps? +
Water prevention in pivot doors is achieved through a multi-tier engineering strategy. Primor integrates concealed mechanical drop seals that automatically drop down flat against the threshold when the door leaf engages the closed position. Additionally, our profiles utilize internal drainage channels with non-return pressure valves, combined with heavy-duty exterior weather hoods and dual-layer EPDM rubber compression gaskets along the perimeter to achieve EN 12208 Class 9A water tightness ratings.
Can Primor manufacture pivot entry doors to custom architectural dimensions? +
Yes. Every single pivot entrance door produced by Primor Metal Door Co., Ltd. is custom-built to measure based on architectural elevation drawings or site window schedule opening dimensions. We can manufacture single-panel pivot doors up to 3 meters in width and up to 6 meters in vertical height, complete with integrated fixed sidelights and transom panels.
What structural information is required to receive a technical proposal and quotation? +
To prepare an accurate engineering quote, please provide your CAD drawings or architectural window schedule, project location (for structural wind-load and local energy code compliance calculations), structural wall thickness, preferred profile finish (e.g., anodized, powder-coated RAL color, or wood-grain), glass requirements (double/triple Low-E insulated glass), and desired access control systems (biometric, keyless, or manual).
How are heavy pivot doors installed and supported structurally on site? +
The primary load of a heavy pivot door is anchored into the finished floor slab rather than the wall frame. The bottom floor pivot box requires a recess in the concrete floor slab (or heavy structural beam) to house the hydraulic self-closing mechanism. The top pivot anchor attaches to a solid lintel or steel structural beam. Primor provides step-by-step structural anchor detailing and shop drawings to guide site contractor installation.
What glazing options are available for hurricane impact and energy efficiency? +
We offer double and triple insulated glass units (IGUs) configured with Low-E coatings, warm-edge composite spacers, and argon gas fill to achieve U-values low as 1.1 W/m²K. For hurricane-prone coastal regions or security-sensitive projects, we supply PVB/SGP laminated impact-resistant glass certified against windborne debris impact and bulletproof rating requirements.
How are international shipments packaged to ensure zero damage during sea transit? +
All door leaves, heavy hardware components, glass units, and aluminum jambs are individually wrapped in scratch-resistant protective film and Pearl Cotton foam layers. Items are then packed inside heavy-duty, fully enclosed fumigated plywood crates reinforced with internal steel framing to prevent crushing or displacement during ocean container transport.
Ready to Engineer Your Custom Entrance System?
Connect with Primor’s architectural door engineering team today. Send us your project drawings or window schedules to receive a comprehensive technical proposal, shop drawings, and direct factory pricing.
